1U 8-Ch SD/HD/3G-SDI Fiber CWDM Extender Broadcast-Grade up to 120Km
Overview
The LNK-SDI-8V Series delivers reliable 8-channel SD/HD/3G-SDI video transmission over a single
optical fiber using advanced CWDM technology. Supporting resolutions up to 1080p60, it ensures
uncompressed broadcast-quality delivery with automatic equalization and re-clocking. With reverse
RS-485 data, hot-swappable design, and rack-mount form factor, it is ideal for professional broadcasting,
live event production, and mission-critical video transport over distances up to 120Km.
Features
8-Channel Video Transport: Simultaneous SD/HD/3G-SDI over single fiber.
CWDM Technology: Efficient multiplexing for long-distance high-bandwidth links.
Signal Integrity: Auto equalization and re-clocking for stable transmission.
Uncompressed Quality: Broadcast-grade digital video up to 1080p60.
Reverse RS-485: Built-in return data channel for camera or control systems.
Fiber Range: From 10Km up to 120Km over simplex LC fiber.
Rack-Mount Design: 1U chassis with LED status monitoring.
Rugged & Reliable: Operates from -20°C to +70°C, MTBF >100,000h.
Technical Indexes
| Fiber Optical interface |
| Fiber interface | Simplex LC |
| Transmission distance | 550m-20Km |
| Wavelength | 1310nm/1550nm |
| Video |
| Video interface | BNC |
| Video input/output impedance | 75Ω |
| Video input/output voltage | Typical:1Vpp, Min 0.5Vpp, Max 1.5Vpp |
| Video Bits Rate | Max 3.2Gb/s |
| Differential gain (10%～90% APL) | <1% |
| SDI format support | 625/25 PAL |
| 525/29.97 NTSC, 525/23.98 NTSC |
| 720p50, 720p59.94 |
| 1080i 23/24/30/50/59.94 |
| 1080P 23.98/24/30/50/60 |
| Video SDI standard | 270Mbps (SD-SDI), 1.485Gbps/M(HD-SDI) |
| SMPTE425M3Gb/s Mapping(3G-SDI) |
| SMPTE424M 3Gb/s serial interface(3G-SDI) |
| Data |
| Physical interface | Industrial standard screw terminal |
| Data type | Reverse RS485 |
| Frequency/Rate support | Max. 57600bps for RS485 |
| BER | <10ˉ9 |
| Electrical |
| Power adaptor | AC 110~220V |
| Power consumption | <15W |
| LED Indicator |
| SDI A/B/C/D/E/F/G/H | SDI video |
| PWR | Power Supply |
| Mechanical |
| Dimensions (LxWxH) | 19inch 1U (483 x 220 x 44.45mm ) |
| Weight | 7KG/pair |
| Casing | Aluminum Case |
| Mounting Options | Rackmount |
| Environmental |
| Working Temperature | -20℃～+70℃ |
| Storage Temperature | -40℃～+80℃ |
| Working Humidity | 0~95% |
| MTBF | ≥100000 hours |
Ordering Information
| Model | Description |
| LNK-SDI-8V | 19" 1U 8-Ch HD-SDI Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1R | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-SDI-8V1A | 19" 1U 8-Ch HD-SDI Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1R | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch RS485 Reverse Data, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |
| LNK-3GSDI-8V1A | 19" 1U 8-Ch 3G-SDI 1080P Video with Loop-out + 1-Ch Forward Audio, 20km, SM, LC, including 1 transmitter & 1 receiver, used by pairs |

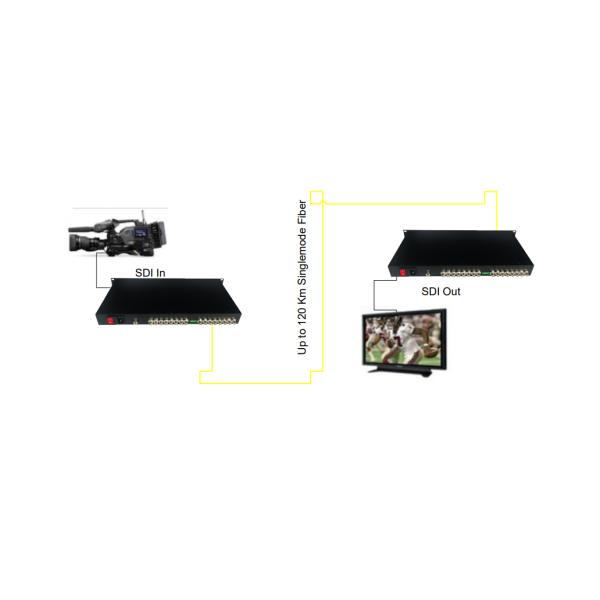

Application
